Activités en ligne/instantanées pour Android
Découvrez comment émuler les mises à jour en ligne/instantanées dans le SDK Android Braze. Bien que les mises à jour en direct ne soient pas officiellement prises en charge, ce guide vous montrera comment émuler leur comportement, afin que vous puissiez afficher des notifications interactives sur l’écran de verrouillage similaires aux activités en direct pour le SDK Swift Braze. Contrairement aux mises à jour en ligne/en production/instantanées officielles, cette fonctionnalité peut être mise en œuvre pour les anciennes versions d’Android.
Fonctionnement
Vous pouvez utiliser l’interface IBrazeNotificationFactory
pour personnaliser l’affichage des notifications push de Braze. En étendant BrazeNotificationFactory
, Braze appellera la méthode createNotification()
de votre usine avant que la notification ne soit affichée à l’utilisateur. Il transmettra ensuite une charge utile contenant des paires clé-valeur personnalisées envoyées via le tableau de bord de Braze ou l’API REST.
Emulation d’une mise à jour en ligne/instantanée
Les mises à jour en ligne/instantanées ne sont pas prises en charge de manière native dans le système d’exploitation Android. La section suivante vous montre seulement comment émuler leur comportement général.

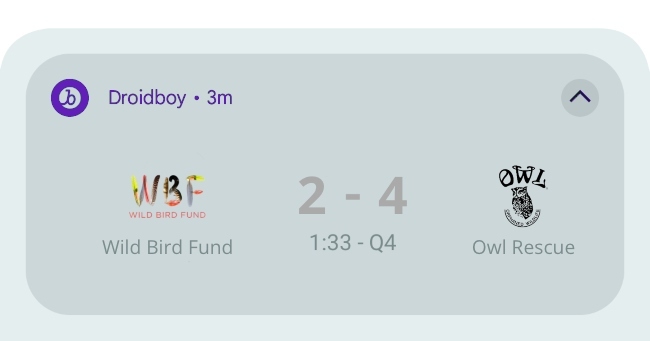

Dans cette section, vous serez le partenaire de Superb Owl, l’animateur d’un nouveau jeu télévisé dans lequel des équipes de sauvetage d’animaux sauvages s’affrontent pour savoir qui peut enregistrer le plus grand nombre de hiboux. Ils cherchent à exploiter les mises à jour en direct dans leur application Android, afin d’afficher l’état d’un match en cours et de faire des mises à jour dynamiques de la notification en temps réel.
Prerequisites
Before you can use this feature, you’ll need to integrate the Android Braze SDK.
Étape 1 : Ajouter une mise en page personnalisée
Vous pouvez ajouter une ou plusieurs lignes/en production/instantanées personnalisées à votre projet. Ils permettent de gérer l’affichage des notifications lorsqu’elles sont réduites ou développées. La structure de votre répertoire devrait ressembler à ce qui suit :
1
2
3
4
5
6
.
├── app/
└── res/
└── layout/
├── liveupdate_collapsed.xml
└── liveupdate_expanded.xml
Dans chaque fichier XML, créez une mise en page personnalisée. Superb Owl a créé les mises en page suivantes pour leurs lignes/en production/instantanées réduites et étendues :
1
2
3
4
5
6
7
8
9
10
11
12
13
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical">
<TextView
android:id="@+id/notification_title"
style="@style/TextAppearance.Compat.Notification.Title"
android:layout_width="wrap_content"
android:layout_height="0dp"
android:layout_weight="1" />
</LinearLayout>
Montrer le code d’exemple
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<LinearLayout
android:layout_width="0dp"
android:layout_weight="1"
android:layout_gravity="center"
android:layout_height="wrap_content"
android:orientation="vertical">
<ImageView
android:id="@+id/team1logo"
android:layout_width="wrap_content"
android:layout_height="60dp"
android:layout_gravity="center"
android:src="@drawable/team_default1"/>
<TextView
android:id="@+id/team1name"
android:textAlignment="center"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
</LinearLayout>
<LinearLayout
android:layout_width="0dp"
android:layout_weight="1.6"
android:layout_gravity="center"
android:layout_height="wrap_content"
android:orientation="vertical">
<TextView
android:id="@+id/score"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="2-4"
android:textColor="#555555"
android:textAlignment="center"
android:textSize="32sp"
android:textStyle="bold" />
<TextView
android:id="@+id/timeInfo"
android:textAlignment="center"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
</LinearLayout>
<LinearLayout
android:layout_width="0dp"
android:layout_weight="1"
android:layout_gravity="center"
android:layout_height="wrap_content"
android:orientation="vertical">
<ImageView
android:id="@+id/team2logo"
android:layout_gravity="center"
android:layout_width="wrap_content"
android:layout_height="60dp"
android:src="@drawable/team_default2"/>
<TextView
android:id="@+id/team2name"
android:textAlignment="center"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
</LinearLayout>
</LinearLayout>
Étape 2 : Créer une fabrique de notifications personnalisées
Dans votre application, créez un nouveau fichier nommé MyCustomNotificationFactory.kt
qui étend BrazeNotificationFactory
pour gérer l’affichage des mises à jour en ligne/instantanées de Braze.
Dans l’exemple suivant, Superb Owl a créé une usine de notification personnalisée pour afficher une mise à jour en ligne/en production/instantanée pour les matchs en cours. Dans l’ étape suivante, ils créeront une nouvelle méthode appelée getTeamInfo
pour mapper les données d’une équipe à l’activité.
Montrer le code d’exemple
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
import android.app.Notification
import android.widget.RemoteViews
import androidx.core.app.NotificationCompat
import com.braze.models.push.BrazeNotificationPayload
import com.braze.push.BrazeNotificationFactory
import com.braze.push.BrazeNotificationUtils.getOrCreateNotificationChannelId
import com.braze.support.BrazeLogger.brazelog
class MyCustomNotificationFactory : BrazeNotificationFactory() {
override fun createNotification(payload: BrazeNotificationPayload): Notification? {
if (payload.extras.containsKey("live_update")) {
val kvp = payload.extras
val notificationChannelId = getOrCreateNotificationChannelId(payload)
val context = payload.context
if (context == null) {
brazelog { "BrazeNotificationPayload has null context. Not creating notification" }
return null
}
val team1 = kvp["team1"]
val team2 = kvp["team2"]
val score1 = kvp["score1"]
val score2 = kvp["score2"]
val time = kvp["time"]
val quarter = kvp["quarter"]
// Superb Owl will define the 'getTeamInfo' method in the next step.
val (team1name, team1icon) = getTeamInfo(team1)
val (team2name, team2icon) = getTeamInfo(team2)
// Get the layouts to use in the custom notification.
val notificationLayoutCollapsed = RemoteViews(BuildConfig.APPLICATION_ID, R.layout.liveupdate_collapsed)
val notificationLayoutExpanded = RemoteViews(BuildConfig.APPLICATION_ID, R.layout.liveupdate_expanded)
// Very simple notification for the small layout
notificationLayoutCollapsed.setTextViewText(
R.id.notification_title,
"$team1 $score1 - $score2 $team2\n$time $quarter"
)
notificationLayoutExpanded.setTextViewText(R.id.score, "$score1 - $score2")
notificationLayoutExpanded.setTextViewText(R.id.team1name, team1name)
notificationLayoutExpanded.setTextViewText(R.id.team2name, team2name)
notificationLayoutExpanded.setTextViewText(R.id.timeInfo, "$time - $quarter")
notificationLayoutExpanded.setImageViewResource(R.id.team1logo, team1icon)
notificationLayoutExpanded.setImageViewResource(R.id.team2logo, team2icon)
val customNotification = NotificationCompat.Builder(context, notificationChannelId)
.setSmallIcon(R.drawable.notification_small_icon)
.setStyle(NotificationCompat.DecoratedCustomViewStyle())
.setCustomContentView(notificationLayout)
.setCustomBigContentView(notificationLayoutExpanded)
.build()
return customNotification
} else {
// Use the BrazeNotificationFactory for all other notifications
return super.createNotification(payload)
}
}
}
Étape 3 : Mappage de données personnalisées
Dans MyCustomNotificationFactory.kt
, créez une nouvelle méthode pour traiter les données lorsque des mises à jour en direct sont affichées.
Superb Owl a créé la méthode suivante pour mapper le nom et le logo de chaque équipe aux lignes/en production/instantanées étendues :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
class CustomNotificationFactory : BrazeNotificationFactory() {
override fun createNotification(payload: BrazeNotificationPayload): Notification? {
// Your existing code
return super.createNotification(payload)
}
// Your new method
private fun getTeamInfo(team: String?): Pair<String, Int> {
return when (team) {
"WBF" -> Pair("Wild Bird Fund", R.drawable.team_wbf)
"OWL" -> Pair("Owl Rehab", R.drawable.team_owl)
else -> Pair("Unknown", R.drawable.notification_small_icon)
}
}
}
Étape 4 : Définir la fabrique de notifications personnalisée
Dans votre classe d’application, utilisez customBrazeNotificationFactory
pour définir votre fabrique de notifications personnalisée.
1
2
3
4
5
6
7
8
9
10
import com.braze.Braze
class MyApplication : Application() {
override fun onCreate() {
super.onCreate()
// Tell Braze to use your custom factory for notifications
Braze.customBrazeNotificationFactory = MyCustomNotificationFactory()
}
}
Étape 5 : Envoyer l’activité
Vous pouvez utiliser le point d’arrivée de l’API /messages/send
REST API endpoint pour envoyer une notification push à l’appareil Android d’un utilisateur.
Exemple de commande curl
Superb Owl a envoyé sa requête en utilisant la commande curl suivante :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
curl -X POST "https://BRAZE_REST_ENDPOINT/messages/send" \
-H "Authorization: Bearer {REST_API_KEY}" \
-H "Content-Type: application/json" \
--data '{
"external_user_ids": ["USER_ID"],
"messages": {
"android_push": {
"title": "WBF vs OWL",
"alert": "2 to 4 1:33 Q4",
"extra": {
"live_update": "true",
"team1": "WBF",
"team2": "OWL",
"score1": "2",
"score2": "4",
"time": "1:33",
"quarter": "Q4"
},
"notification_id": "ASSIGNED_NOTIFICATION_ID"
}
}
}'
Bien que les commandes curl soient utiles pour les tests, nous recommandons de gérer cet appel dans votre backend où vous gérez déjà vos activités iOS Live.
Paramètres de demande
Clé | Description |
---|---|
REST_API_KEY |
Une clé API Braze REST avec des autorisations messages.send . Cette clé peut être créée dans le tableau de bord de Braze depuis Paramètres > Clés d’API. |
BRAZE_REST_ENDPOINT |
L’URL de votre endpoint REST. Votre endpoint dépendra de l’URL de Braze pour votre instance. |
USER_ID |
L’ID de l’utilisateur auquel vous envoyez la notification. |
messages.android_push.title |
Titre du message. Par défaut, elle n’est pas utilisée pour les notifications en ligne/en production/instantanée de la fabrique de notifications personnalisée, mais elle peut être utilisée comme solution de repli. |
messages.android_push.alert |
Le corps du message. Par défaut, elle n’est pas utilisée pour les notifications en ligne/en production/instantanée de la fabrique de notifications personnalisée, mais elle peut être utilisée comme solution de repli. |
messages.extra |
Paires clé-valeur que la fabrique de notifications personnalisée utilise pour les notifications en ligne/en production/instantanée. Vous pouvez attribuer n’importe quelle chaîne de caractères à cette valeur. Toutefois, dans l’exemple ci-dessus, live_updates est utilisé pour déterminer s’il s’agit d’une notification push par défaut ou en direct. |
ASSIGNED_NOTIFICATION_ID |
L’ID de notification que vous souhaitez attribuer à la notification en ligne/instantanée de l’utilisateur choisi. L’ID doit être unique pour ce jeu et doit être utilisé pour mettre à jour la notification existante ultérieurement. |
Étape 6 : Mettre à jour l’activité
Pour actualiser la mise à jour en ligne existante avec de nouvelles données, modifiez les paires clé-valeur pertinentes attribuées à messages.extra
, puis utilisez le même notification_id
et appelez à nouveau le point de terminaison /messages/send
.
