File storage integrations

This page covers how to set up Cloud Data Ingestion support and sync relevant data from S3 to Braze.

How it works

You can use Cloud Data Ingestion (CDI) for S3 to directly integrate one or more S3 buckets in your AWS account with Braze. When new files are published to S3, a message is posted to SQS, and Braze Cloud Data Ingestion takes in those new files.

Cloud Data Ingestion supports the following:

• JSON files
• CSV files
• Parquet files
• Attributes, event, purchase, and user delete data

Prerequisites

The integration requires the following resources:

• S3 bucket for data storage
• SQS queue for new file notifications
• IAM role for Braze access

AWS definitions

First, let’s define some of the terms used during this task.

Setting up Cloud Data Ingestion in AWS

Step 1: Create a source bucket

Create a general purpose S3 bucket with default settings in your AWS account. S3 buckets can be reused across syncs as long as the folder is unique.

The default settings are:

• ACLs Disabled
• Block all public access
• Disable bucket versioning
• SSE-S3 encryption

Take note of the region you’ve created the bucket in, as you will create an SQS queue in the same region in the next step.

Step 2: Create SQS queue

Create an SQS queue to track when objects are added to the bucket you’ve created. Use the default configuration settings for now.

An SQS queue must be unique globally (for example, only one can be used for a CDI sync and cannot be reused in another workspace).

Make sure you take note of the ARN and the URL of the SQS as you’ll be using it frequently during this configuration.

Step 3: Set up access policy

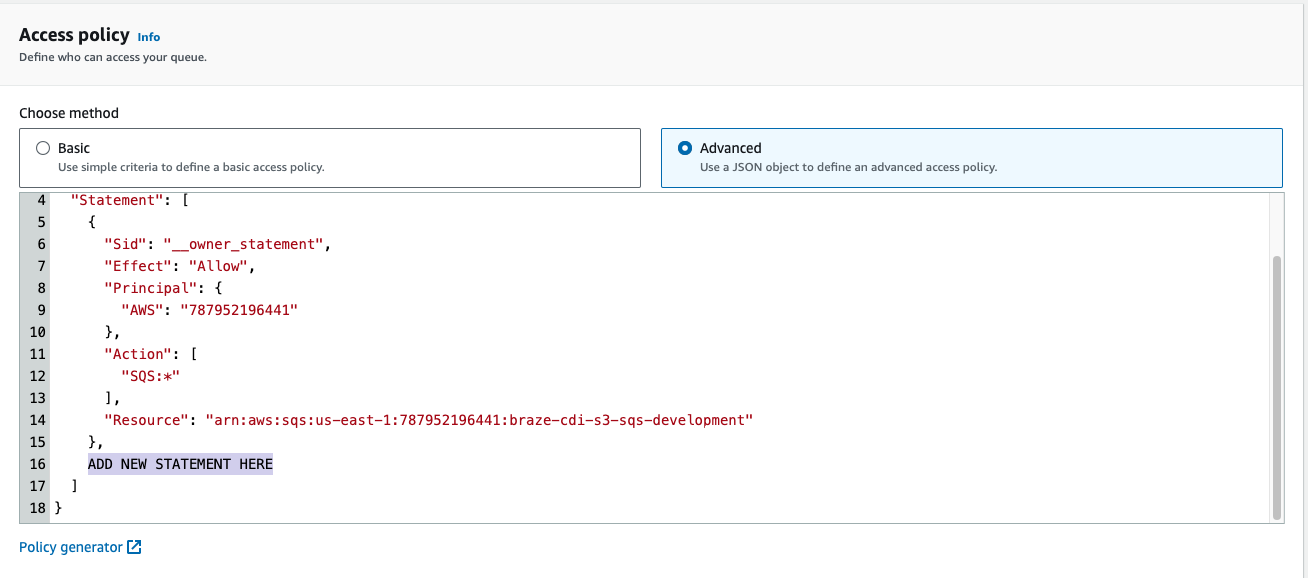

To set up the access policy, choose Advanced options.

Append the following statement to the queue’s access policy, being careful to replace YOUR-BUCKET-NAME-HERE with your bucket name, and YOUR-SQS-ARN with your SQS queue ARN, and YOUR-AWS-ACCOUNT-ID with your AWS account ID:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
{
  "Sid": "braze-cdi-s3-sqs-publish",
  "Effect": "Allow",
  "Principal": {
    "Service": "s3.amazonaws.com"
  },
  "Action": "SQS:SendMessage",
  "Resource": "YOUR-SQS-ARN",
  "Condition": {
    "StringEquals": {
      "aws:SourceAccount": "YOUR-AWS-ACCOUNT-ID"
    },
    "ArnLike": {
      "aws:SourceArn": "arn:aws:s3:::YOUR-BUCKET-NAME-HERE"
    }
  }
}

Step 4: Add an event notification to the S3 bucket

1. In the bucket created in step 1, go to Properties > Event notifications.
2. Give the configuration a name. Optionally, specify a prefix or suffix to target if you only want a subset of files to be ingested by Braze.
3. Under Destination select SQS queue and provide the ARN of the SQS you created in step 2.

Step 5: Create an IAM policy

Create an IAM policy to allow Braze to interact with your source bucket. To get started, sign in to the AWS management console as an account administrator.

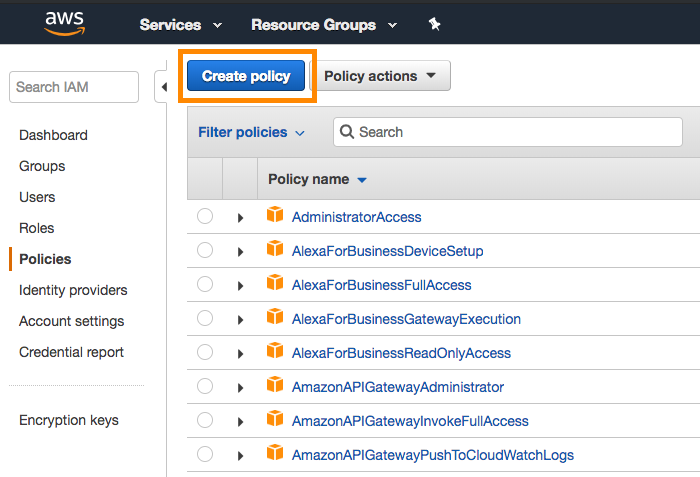

1. Go to the IAM section of the AWS Console, select Policies in the navigation bar, then select Create Policy.





2. Open the JSON tab and input the following code snippet into the Policy Document section, taking care to replace YOUR-BUCKET-NAME-HERE with your bucket name, and YOUR-SQS-ARN-HERE with your SQS queue name:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": ["s3:ListBucket", "s3:GetObjectAttributes", "s3:GetObject"],
            "Resource": ["arn:aws:s3:::YOUR-BUCKET-NAME-HERE"]
        },
        {
            "Effect": "Allow",
            "Action": ["s3:ListBucket", "s3:GetObjectAttributes", "s3:GetObject"],
            "Resource": ["arn:aws:s3:::YOUR-BUCKET-NAME-HERE/*"]
        },
        {
            "Effect": "Allow",
            "Action": [
                "sqs:DeleteMessage",
                "sqs:GetQueueUrl",
                "sqs:ReceiveMessage",
                "sqs:GetQueueAttributes"
            ],
            "Resource": "YOUR-SQS-ARN-HERE"
        }
    ]
}

3. Select Review Policy when you’re finished.

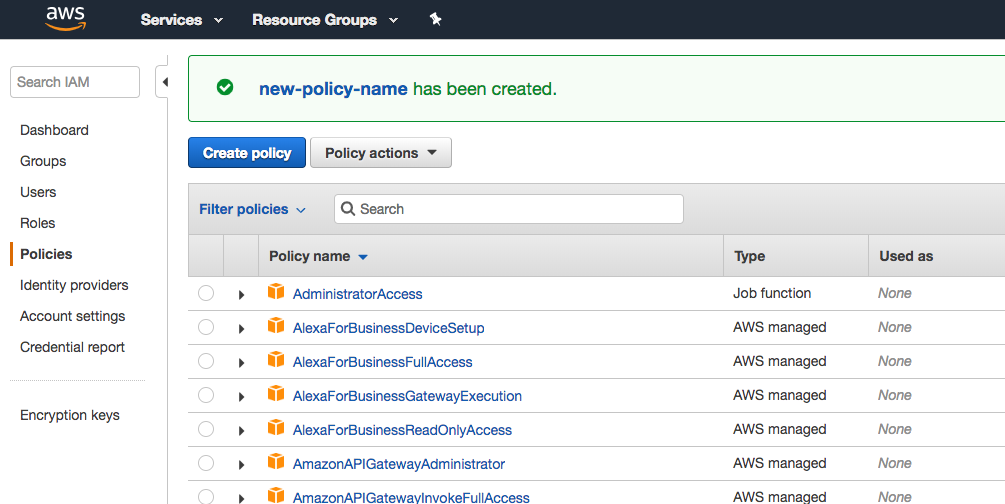

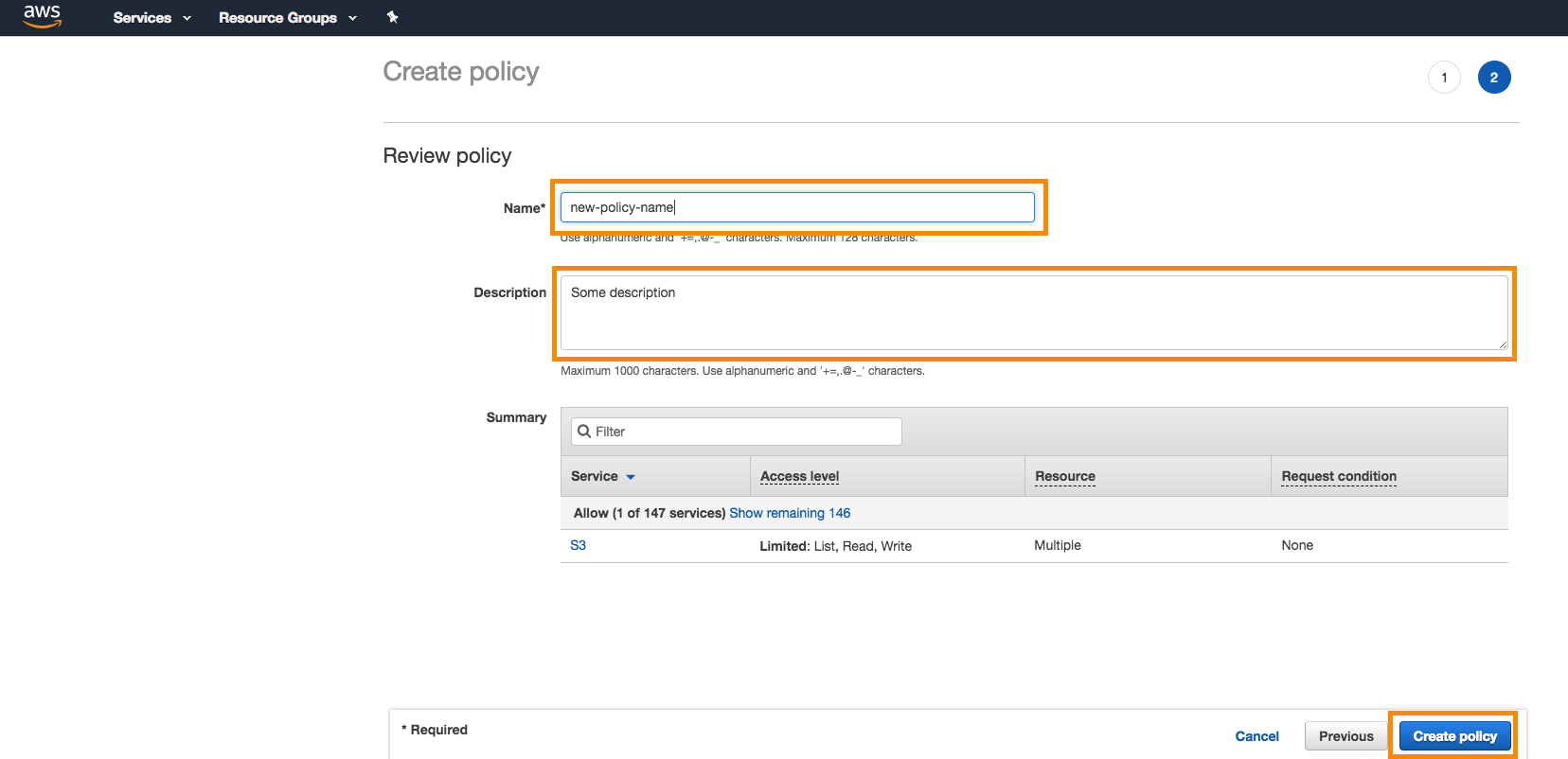

4. Give the policy a name and description and select Create Policy.

Step 6: Create an IAM role

To complete the setup on AWS, you will create an IAM role and attach the IAM policy from step 4 to it.

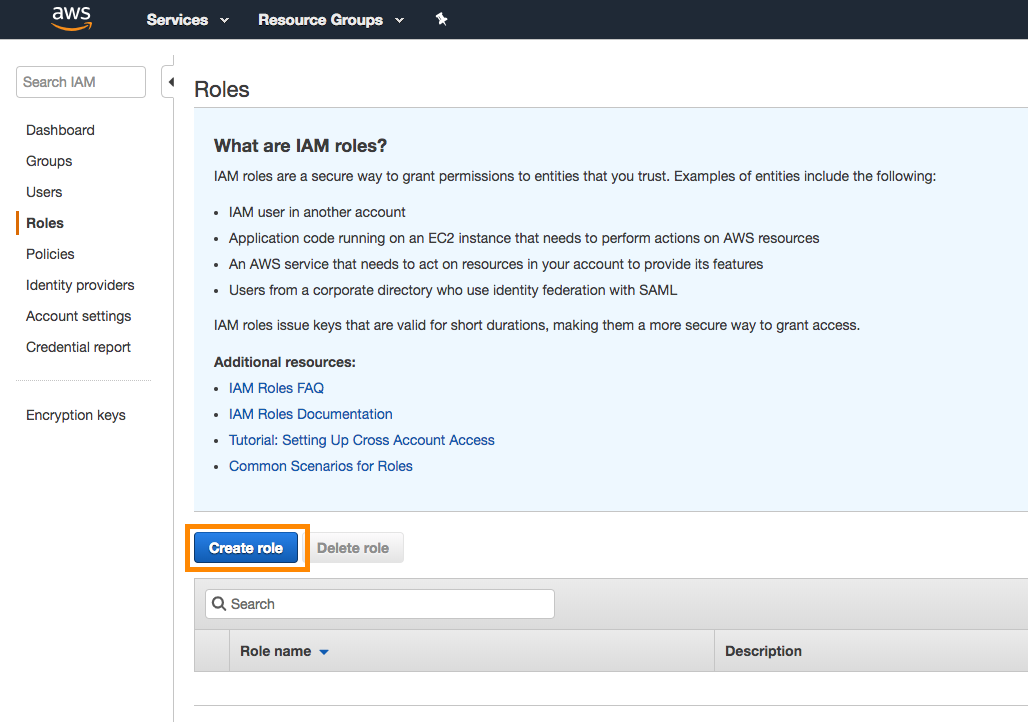

1. Within the same IAM section of the console where you created the IAM policy, go to Roles > Create Role.

1. Copy the Braze AWS account ID from your Braze dashboard. Go to Cloud Data Ingestion, select Create New Data Sync and select S3 Import.

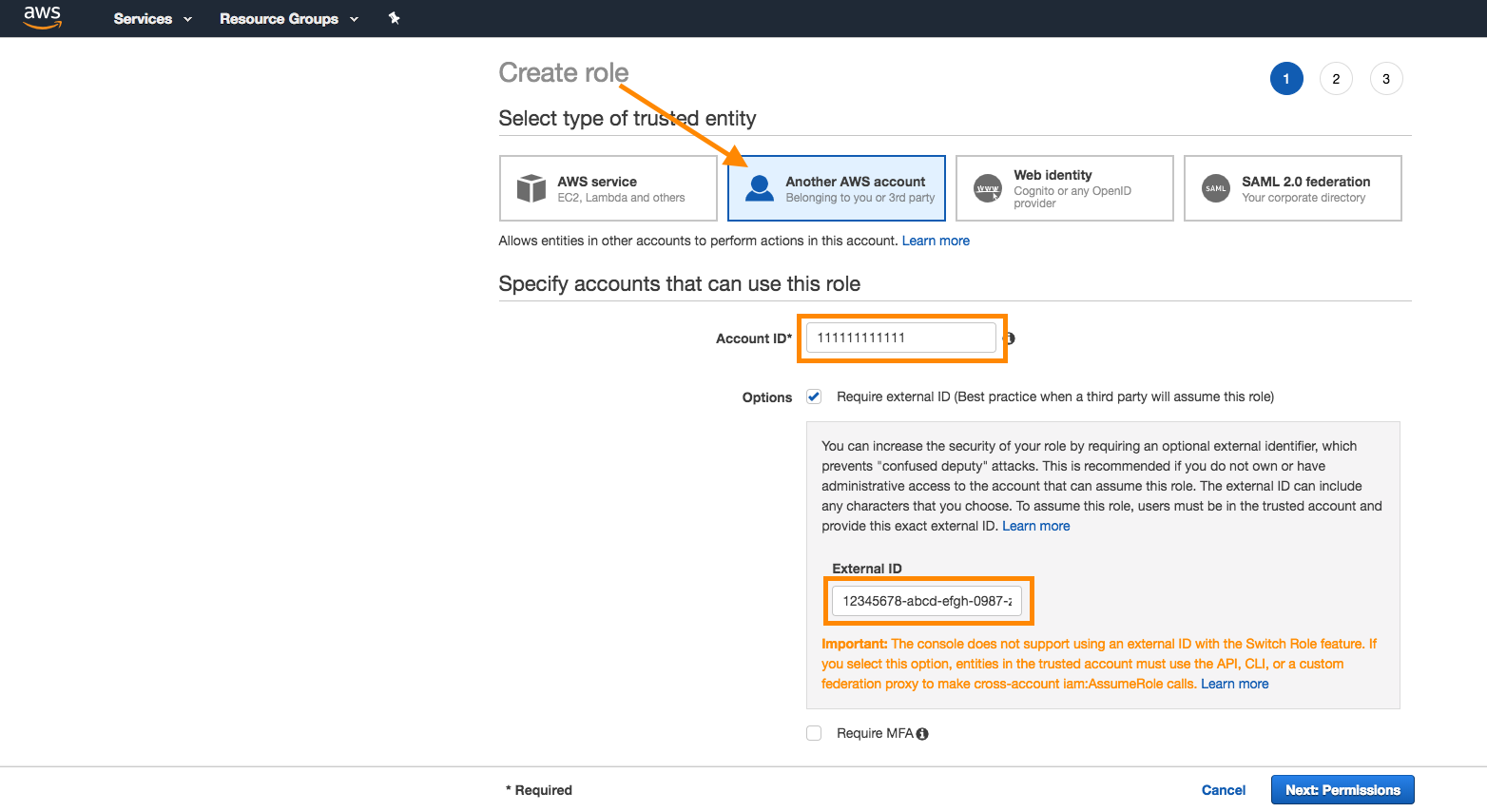

2. In AWS, select Another AWS Account as the trusted entity selector type. Provide your Braze account ID, select the Require external ID checkbox, and enter an external ID for Braze to use. Select Next when complete.

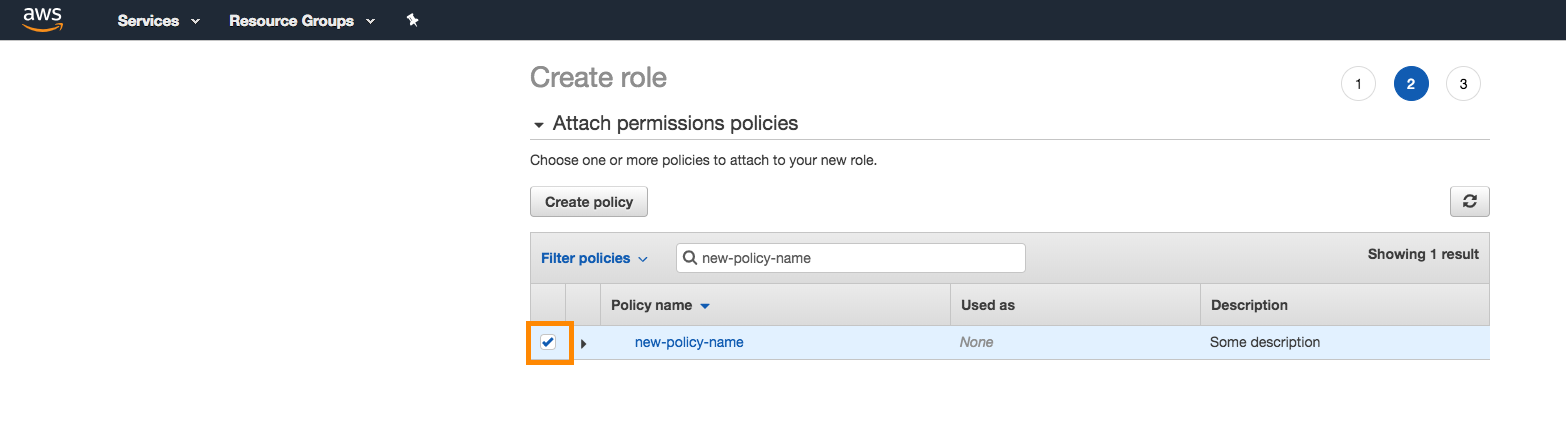

4. Attach the policy created in step 4 to the role. Search for the policy in the search bar, and select a checkmark next to the policy to attach it. Select Next when complete.

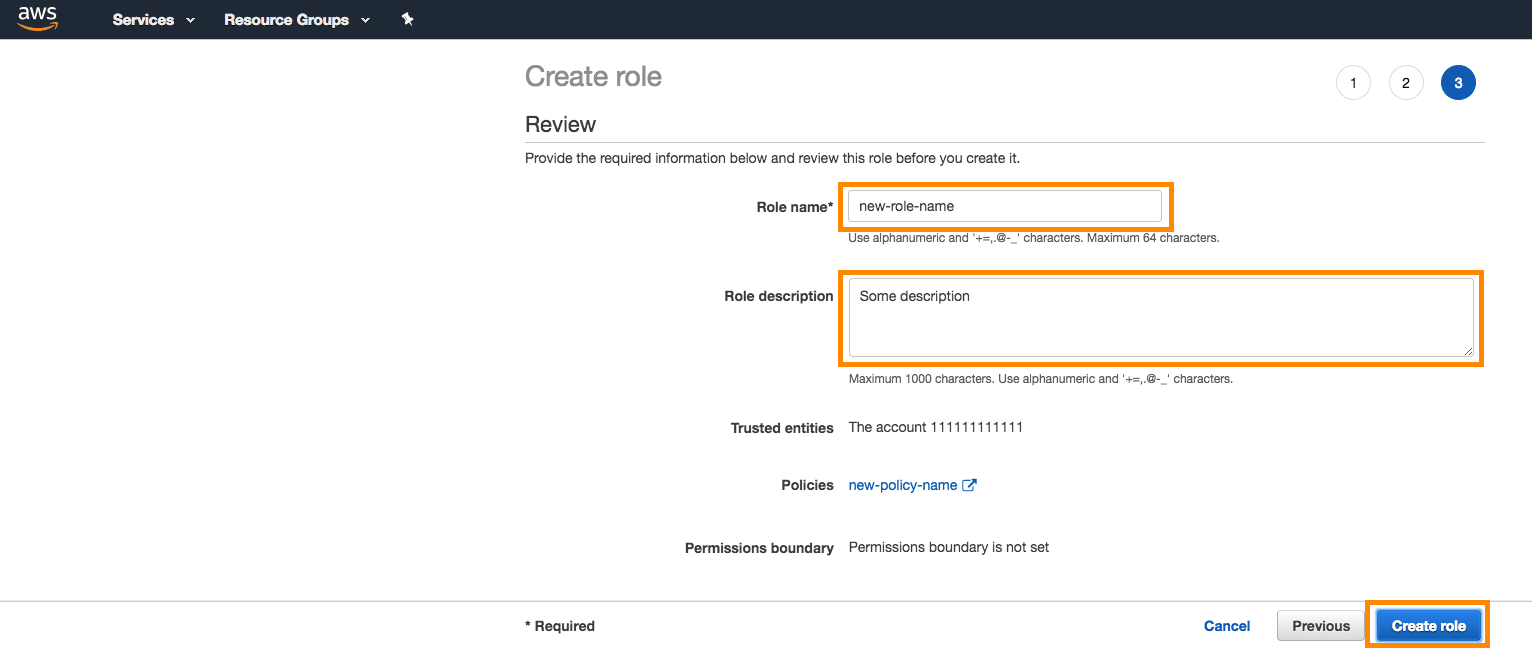

Give the role a name and a description, and select Create Role.

5. Take note of the ARN of the role you just created and the external-id you generated, as you’ll use them to create the Cloud Data Ingestion integration.

Setting up Cloud Data Ingestion in Braze

1. To create a new integration, go to Data Settings > Cloud Data Ingestion, select Create New Data Sync, and select S3 Import from the file sources section.

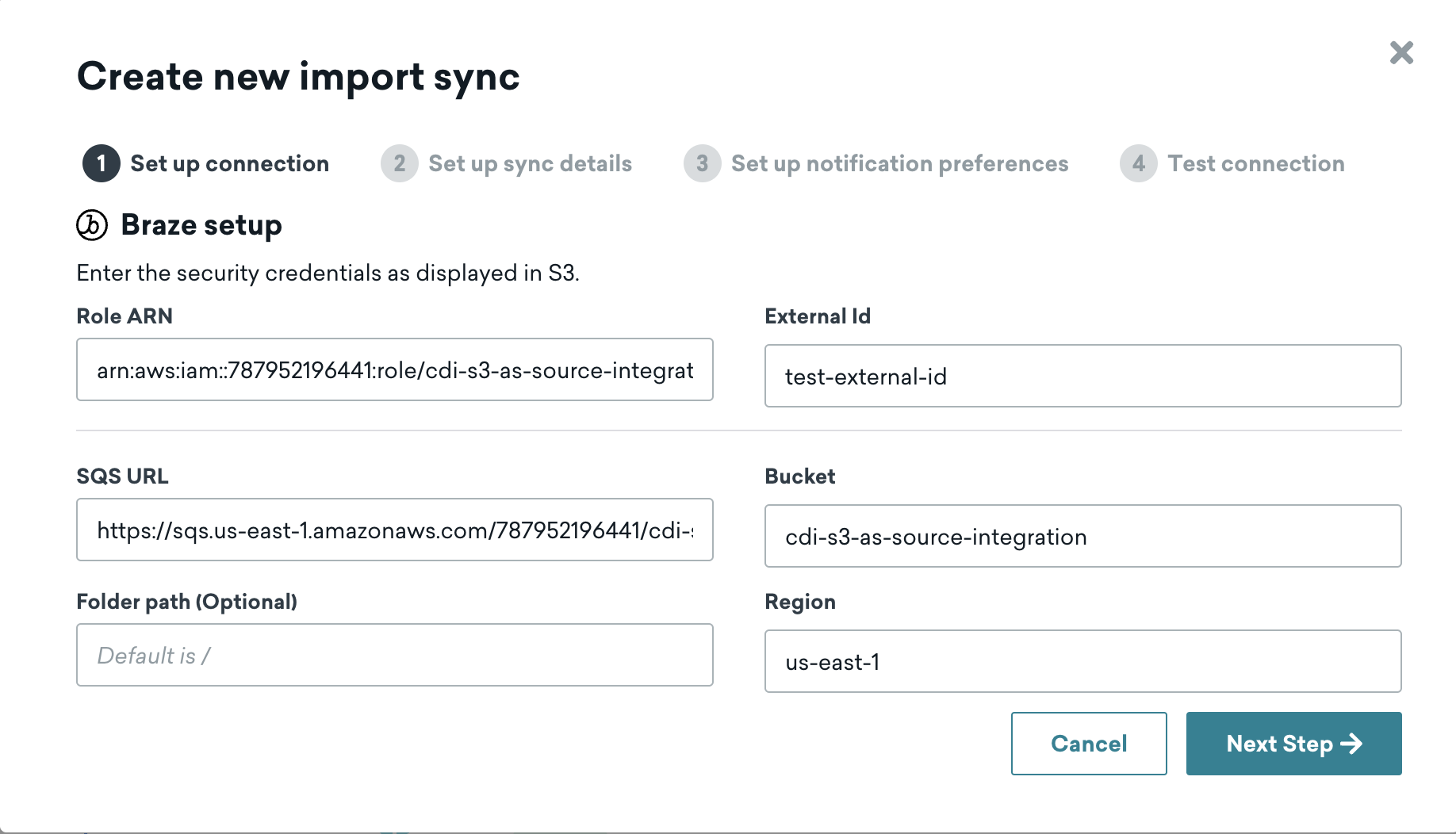

2. Input the information from the AWS setup process to create a new sync. Specify the following:

• Role ARN
• External ID
• SQS URL (must be unique for each new integration)
• Bucket name
• Folder path (optional, must be unique across syncs in a workspace)
• Region

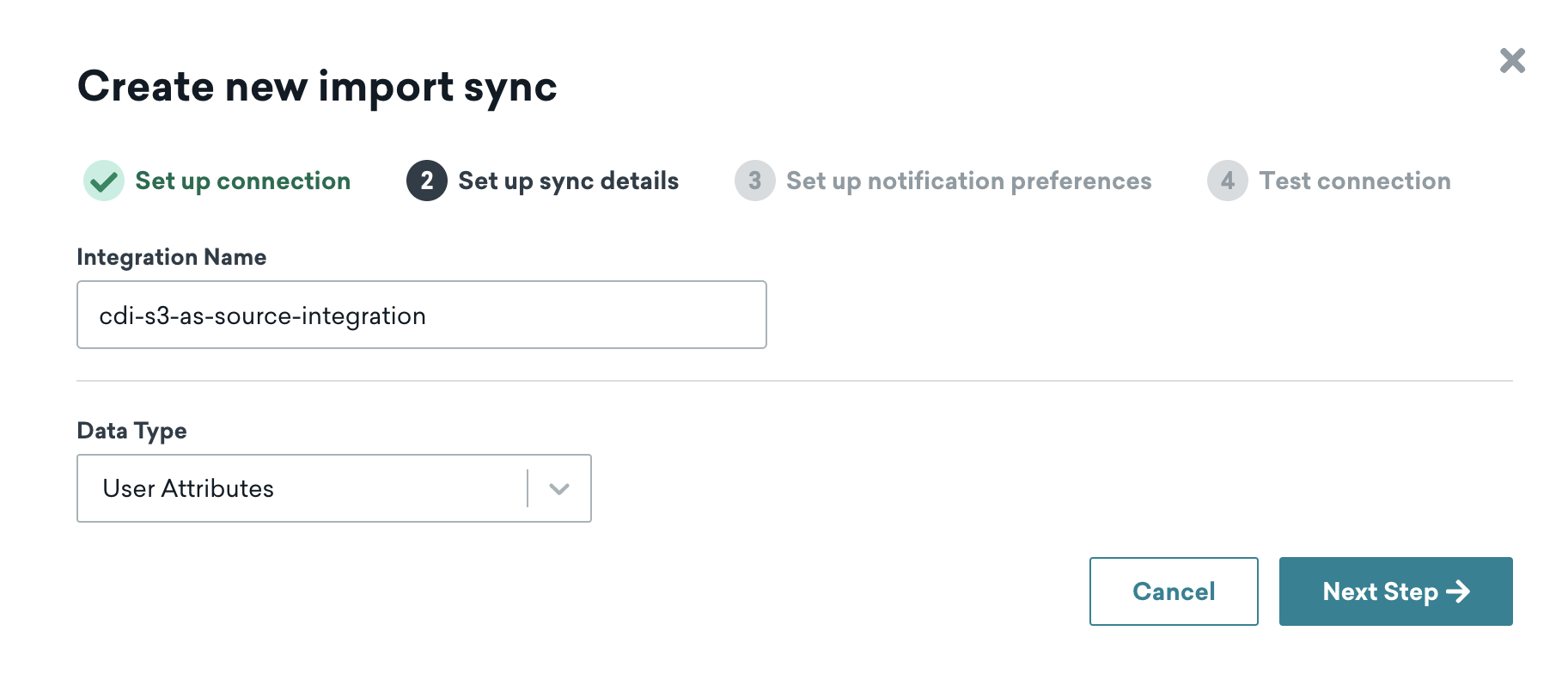

3. Name your integration, and select the data type for this integration.

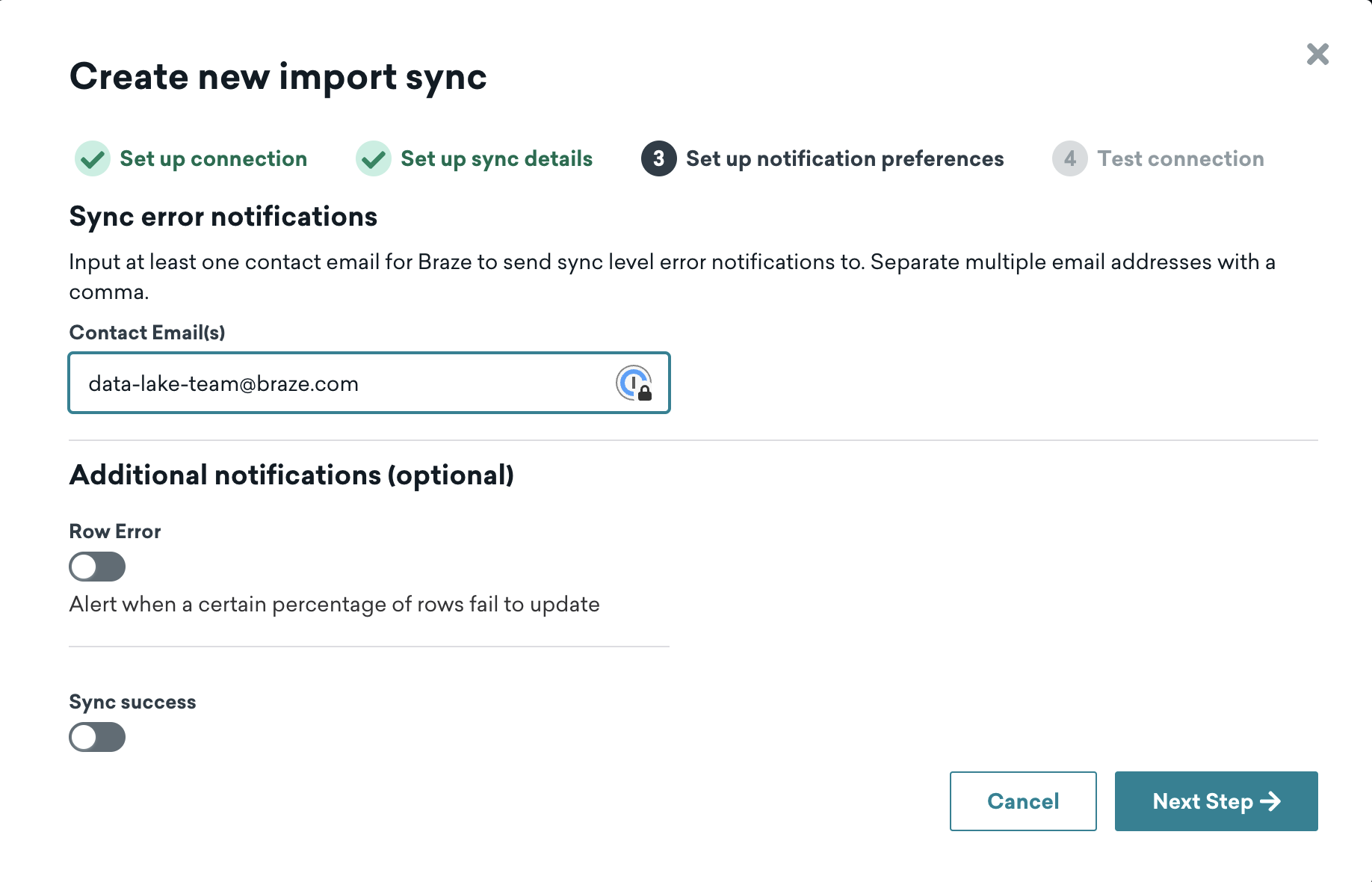

4. Add a contact email for notifications if the sync breaks because of access or permissions issues. Optionally, turn on notifications for user-level errors and sync successes.

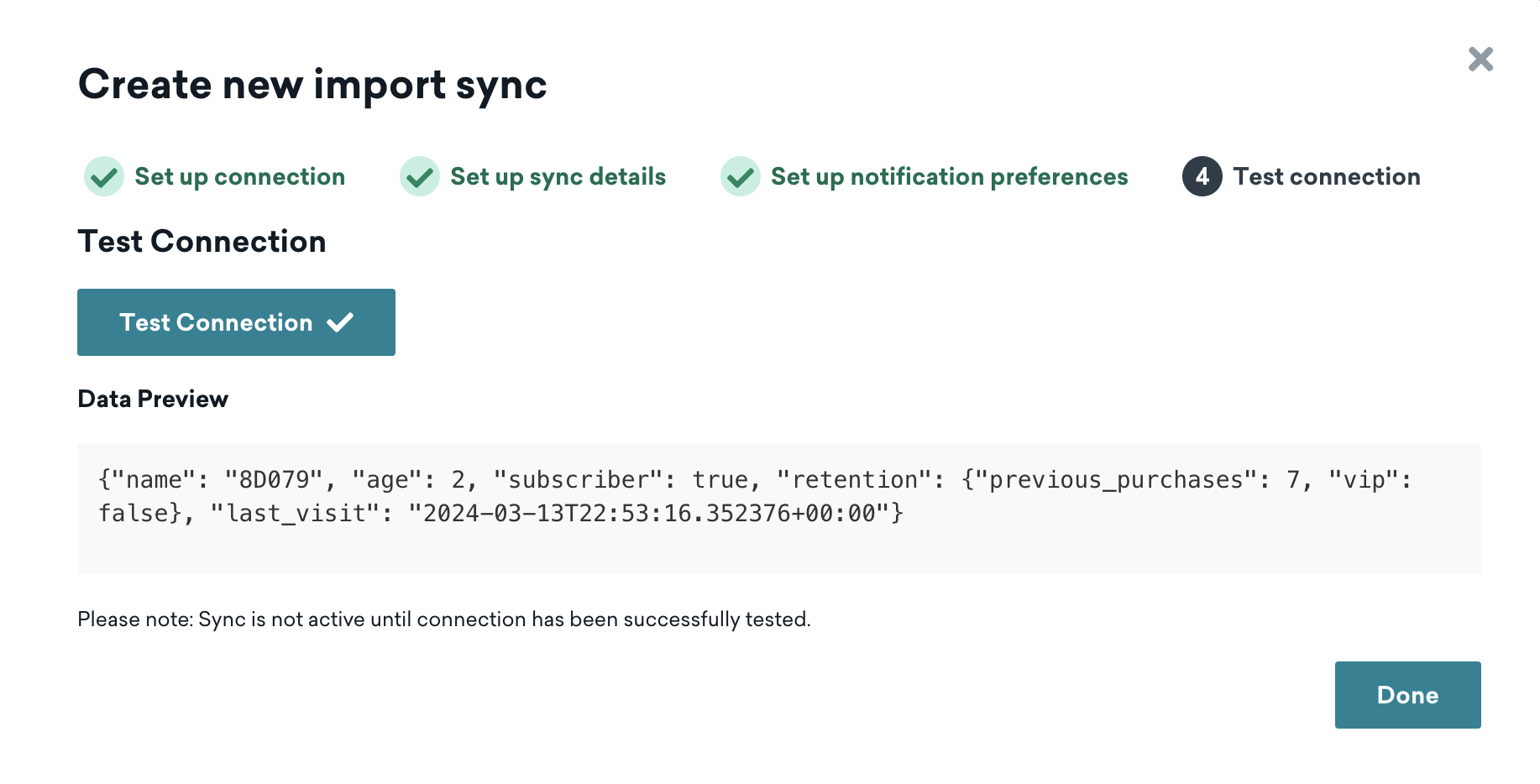

5. Finally, test the connection and save the sync.

Required file formats

Cloud Data Ingestion supports JSON, CSV, and Parquet files. Each file must contain one or more of the supported identifier columns, and a payload column as a JSON string.

Braze doesn’t enforce any additional filename requirements beyond what’s enforced by AWS. Filenames should be unique. We recommend appending a timestamp for uniqueness.

User identifiers

Your source file may contain one or more user identifier columns or keys. Each row should only contain one identifier, but a source file may have multiple identifier types.

• json attributes
• json custom events
• json purchase events
• csv attributes

1
2
3
4
5
6
7
{"external_id":"s3-qa-0","payload":"{\"name\": \"GT896\", \"age\": 74, \"subscriber\": true, \"retention\": {\"previous_purchases\": 21, \"vip\": false}, \"last_visit\": \"2023-08-08T16:03:26.600803\"}"}
{"external_id":"s3-qa-1","payload":"{\"name\": \"HSCJC\", \"age\": 86, \"subscriber\": false, \"retention\": {\"previous_purchases\": 0, \"vip\": false}, \"last_visit\": \"2023-08-08T16:03:26.600824\"}"}
{"external_id":"s3-qa-2","payload":"{\"name\": \"YTMQZ\", \"age\": 43, \"subscriber\": false, \"retention\": {\"previous_purchases\": 23, \"vip\": true}, \"last_visit\": \"2023-08-08T16:03:26.600831\"}"}
{"external_id":"s3-qa-3","payload":"{\"name\": \"5P44M\", \"age\": 15, \"subscriber\": true, \"retention\": {\"previous_purchases\": 7, \"vip\": true}, \"last_visit\": \"2023-08-08T16:03:26.600838\"}"}
{"external_id":"s3-qa-4","payload":"{\"name\": \"WMYS7\", \"age\": 11, \"subscriber\": true, \"retention\": {\"previous_purchases\": 0, \"vip\": false}, \"last_visit\": \"2023-08-08T16:03:26.600844\"}"}
{"external_id":"s3-qa-5","payload":"{\"name\": \"KCBLK\", \"age\": 47, \"subscriber\": true, \"retention\": {\"previous_purchases\": 11, \"vip\": true}, \"last_visit\": \"2023-08-08T16:03:26.600850\"}"}
{"external_id":"s3-qa-6","payload":"{\"name\": \"T93MJ\", \"age\": 47, \"subscriber\": true, \"retention\": {\"previous_purchases\": 10, \"vip\": false}, \"last_visit\": \"2023-08-08T16:03:26.600856\"}"}

1
2
{"external_id":"s3-qa-0","payload":"{\"app_id\": \"YOUR_APP_ID\", \"name\": \"view-206\", \"time\": \"2024-04-02T14:34:08\", \"properties\": {\"bool_value\": false, \"preceding_event\": \"unsubscribe\", \"important_number\": 206}}"}
{"external_id":"s3-qa-1","payload":"{\"app_id\": \"YOUR_APP_ID\", \"name\": \"view-206\", \"time\": \"2024-04-02T14:34:08\", \"properties\": {\"bool_value\": false, \"preceding_event\": \"unsubscribe\", \"important_number\": 206}}"}

1
2
{"external_id":"s3-qa-0","payload":"{\"app_id\": \"YOUR_APP_ID\", \"product_id\": \"product-11\", \"currency\": \"BSD\", \"price\": 8.511527858335066, \"time\": \"2024-04-02T14:34:08\", \"quantity\": 19, \"properties\": {\"is_a_boolean\": true, \"important_number\": 40, \"preceding_event\": \"click\"}}"}
{"external_id":"s3-qa-1","payload":"{\"app_id\": \"YOUR_APP_ID\", \"product_id\": \"product-11\", \"currency\": \"BSD\", \"price\": 8.511527858335066, \"time\": \"2024-04-02T14:34:08\", \"quantity\": 19, \"properties\": {\"is_a_boolean\": true, \"important_number\": 40, \"preceding_event\": \"click\"}}"}

external_id,payload
s3-qa-load-0-d0daa196-cdf5-4a69-84ae-4797303aee75,"{""name"": ""SNXIM"", ""age"": 54, ""subscriber"": true, ""retention"": {""previous_purchases"": 19, ""vip"": true}, ""last_visit"": ""2023-08-08T16:03:26.598806""}"
s3-qa-load-1-d0daa196-cdf5-4a69-84ae-4797303aee75,"{""name"": ""0J747"", ""age"": 73, ""subscriber"": false, ""retention"": {""previous_purchases"": 22, ""vip"": false}, ""last_visit"": ""2023-08-08T16:03:26.598816""}"
s3-qa-load-2-d0daa196-cdf5-4a69-84ae-4797303aee75,"{""name"": ""EP1U0"", ""age"": 99, ""subscriber"": false, ""retention"": {""previous_purchases"": 23, ""vip"": false}, ""last_visit"": ""2023-08-08T16:03:26.598822""}"

For examples of all supported file types, refer to the sample files in braze-examples.

Things to know

• Files added to the S3 source bucket should not exceed 512MB. Files larger than 512MB will result in an error and won’t be synced to Braze.
• There’s no additional limit on the number of rows per file.
• There’s no additional limit on the number of files uploaded in a given period of time.
• Ordering isn’t suppoerted in or between files. We recommende batching updates periodically if you’re monitoring for any expected race conditions.

Troubleshooting

Uploading files and processing

CDI will only process files that are added after the sync is created. In this process, Braze looks for new files to be added, which triggers a new message to SQS. This will kick off a new sync to process the new file.

Existing files can be used to validate the data structure in test connection, but they will not be synced to Braze. Any existing files that should be synced must be reuploaded to S3 in order to be processed by CDI.

Handling unexpected file errors

If you’re observing a high number of errors or failed files, it’s possible that you may have another process adding files to the S3 bucket in a folder other than the target folder for CDI.

When files are uploaded to the source bucket but not in the source folder, CDI will process the SQS notification but does not take any action on the file, so this may appear as an error.
