Query Builder SQL variables

Learn how to use SQL variables in the Query Builder, so you can reuse your queries and avoid hard-coding any data in your code.

Why use SQL variables?

The benefits of using SQL variables include:

  • Save time by creating a campaign variable to select from a list when creating your report, instead of pasting in campaign IDs.
  • Swap in values by adding variables that allow you to reuse the report for slightly different use cases in the future (such as a different custom event).
  • Reduce user error when editing your SQL by reducing the amount of editing needed for each report. Teammates that are more comfortable with SQL can create reports that less technical teammates can then use.

Using variables

Step 1: Add a variable

To add a variable to your query, use the following syntax:

1

{{variable_type.${custom_label}}}

Replace the following:

In the following example, the total number of users between the first and last day of a month is queried for a campaign. Each variable will be assigned a value in the next step.

1
2
3
4
5

SELECT COUNT(*) AS total_users
FROM USERS_CAMPAIGNS_REVENUE_SHARED
WHERE campaign_id = '{{campaign.${Campaign}}}'
  AND TIME > '{{start_date.${Month First Day}}}'
  AND TIME < '{{end_date.${Month Last Day}}}';

Step 2: Assign a value

By default, the Variables tab isn’t shown in the Query Builder. It only appears after adding your first variable to the query. There, you’ll be able to assign it a value. The specific values you can choose will depend on that specific variable’s type.

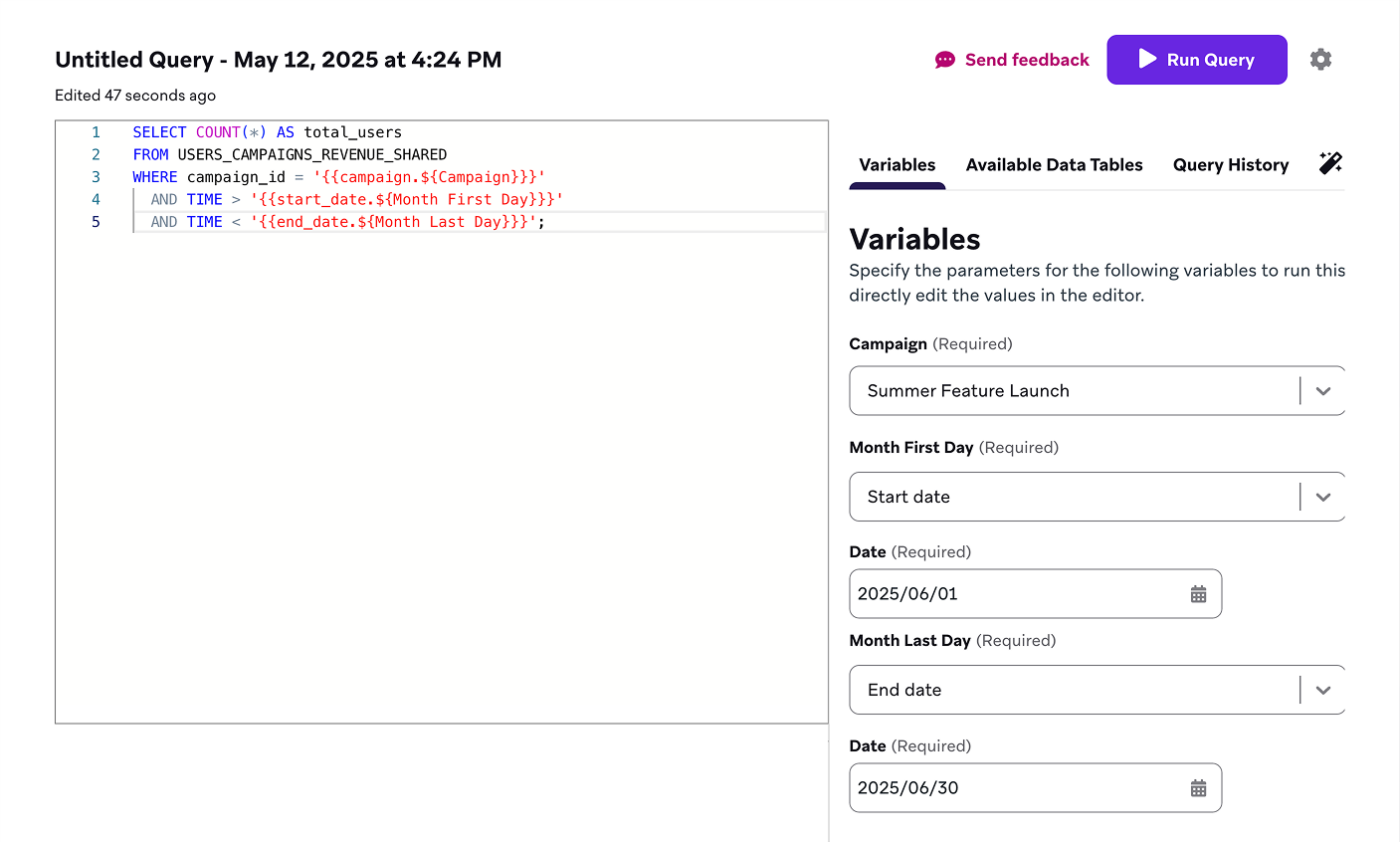

In the following example, the “Summer Feature Launch” campaign is assigned as a value, along with the first and last days of June 2025.

The "Variable" tab in the Query Builder showing the given example.

General variable types

Number

number can be used in combination with other non-string variables. Accepts any positive or negative number, including decimal numbers, such as 5.5.

1

some_number_column < {{number.${custom_label}}}

String

For changing repetitive string values between report runs. Use this variable to avoid hardcoding a value multiple times in your SQL.

1

'{{string.${add a string here.}}}'

List

For selecting from a list of options.

1

{{options.${metrics} | is_radio_button: 'true' | options: '[{"label": "test", "value": "test_value"}, {"label": "test2", "value": "test_value2"}]'}}

1

{{options.${metrics} | is_multi_select: 'true' | options: '[{"label": "test", "value": "test_value"}, {"label": "test2", "value": "test_value2"}]'}}

Radio button

For showing options as radio buttons instead of a select dropdown in the Variables tab. This cannot be used on its own—it must be used in combination with a list.

1

is_radio_button: 'true'

An example radio button rendered in Braze.

Multi-select

For whether the select dropdown allows a single or multi-select. This cannot be used on its own—it must be used in combination with a list.

1

is_multi_select: 'true'

An example multi-select list rendered in Braze.

Options

For providing the list of selectable options in the form of a label and value. The label is what gets shown and the value is what the variable gets replaced with when the option is selected. This cannot be used on its own—it must be used in combination with a list.

1

options: '[{"label": "test", "value": "test_value"}, {"label": "test2", "value": "test_value2"}]'

Braze-specific variable types

Date range

For displaying a calendar to select dates from. Replace start_date and end_date with a Unix timestamp in seconds for a specified date in UTC, such as 1696517353. Optionally, you can set only a start_date or end_date to only display a single date in the calendar. If the labels of your start_date and end_date don’t match, they’ll be treated as two separate dates, rather than a date range.

1

time > {{start_date.${custom_label}}} AND time < {{end_date.${custom_label}}}

You can set the date range to any of the following options. If both start_date and end_date are used and share the same label all options will be shown. Otherwise, if only one is used, then only the specified option will be displayed.

Your Liquid will be used to display a calendar within the given date range:

An example calendar rendered in Braze.

Campaigns

For selecting one campaign. Sharing the same label with a Canvas will result in a radio button within the Variables tab that for selecting either Canvas or campaign.

1

campaign_id = '{{campaign.${custom_label}}}'

For multi-selecting campaigns. Sharing the same label with a Canvas will result in a radio button within the Variables tab for selecting either Canvas or campaign.

  • Replacement value: Campaigns BSON IDs
1

campaign_id IN ({{campaigns.${custom_label}}})

For selecting campaign variants that belong to the selected campaign. It must be used in conjunction with a campaign or campaigns variable.

  • Replacement value: Campaign variants API IDs, strings delimited by commas such as api-id1, api-id2.
1

message_variation_api_id IN ({{campaign_variants.${custom_label}}})

Canvases

For selecting one Canvas. Sharing the same label with a campaign will result in a radio button within the Variables tab that for selecting either Canvas or campaign.

  • Replacement value: Canvas BSON ID
1

canvas_id = '{{canvas.${custom_label}}}'

For selecting multiple Canvases. Sharing the same label with a campaign will result in a radio button within the Variables tab for selecting either Canvas or campaign.

  • Replacement value: Canvases BSON IDs
1

canvas_id IN ({{canvases.${custom_label}}})

For selecting Canvas variants that belong to a chosen Canvas. It must be used with a Canvas or Canvases variable. Set to one or more Canvas variants API IDs, as a comma-separated string, such as in api-id1, api-id2.

1

canvas_variation_api_id IN ({{canvas_variants.${custom_label}}})

For selecting a Canvas step that belongs to a chosen Canvas. It must be used with a Canvas variable.

1

canvas_step_api_id = '{{canvas_step.${custom_label}}}'

For selecting Canvas steps that belong to chosen Canvases. It must be used with a Canvas or Canvases variable.

1

canvas_step_api_id IN ({{canvas_steps.${custom_label}}})

Products

products is used to select one or more products from the Braze dashboard.

1

({{products.${custom_label}}})

1
2
3

SELECT product_name
FROM FULL_GAME_AND_DLC
WHERE product_id IN ({{products.${Games with DLC}}});

Custom events

Select one or more custom events or custom event properties from a list.

custom_events is used to select one or more custom events from the Braze dashboard.

1

'{{custom_events.${custom_label}}}'

1
2
3

SELECT event_name
FROM CUSTOM_EVENTS_TABLE
WHERE event_name = '{{custom_events.${Purchased Game}}}';

custom_event_properties is used to select one or more properties from the currently-select custom event. Requires a set custom_events variable.

1

name = '{{custom_event_properties.${property names)}}}'

Workspace

workspace is used to select a single workspace from the Braze dashboard.

1

workspace_id = '{{workspace.${app_group_id}}}'

Catalogs

Select one or more catologs or catolog fields from a list.

catalogs is used to select one or more catologs from the Braze dashboard.

1

catalog_id = '{{catalogs.${catalog}}}'

catalog_fields is used to set one or more fields from the currently-selected catalog. Requires a set catalogs variable.

1

field_name = '{{catalog_fields.${custom_label}}}'

Segments

For selecting segments that have Analytics Tracking turned on. Set this to the segment analytics ID, which corresponds to the IDs stored in the user_segment_membership_ids column in the tables where this column is available.

1

{{segments.${analytics_segments}}}

Tags

For selecting tags for campaigns and Canvases. Set to Campaigns and Canvases with single-quoted comma-separated BSON IDs that are associated with the selected tags.

1

{{tags.${some tags}}}

Variable metadata

Metadata can be attached to a variable to change its behavior by appending the metadata with a pipe ( | ) character following the variable label. The ordering of the metadata doesn’t matter and you can append any number of them. Additionally, all types of metadata can be used for any variable, except for special metadata that is specific to certain variables (this will be indicated in those cases). The usage of all metadata is optional and is used to change the default’s variable behavior.

1

{{string.${my var}| is_required: 'false' | description: 'My optional string var'}}

Boolean

For knowing whether a variable’s value is filled. This is useful for optional variables where you want to short-circuit a condition if a variable’s value is not filled. Can be set to true or false depending on the other variable’s value.

1

{{string.${type_name_has_no_value} | visible: 'false'}} or {{string.${type_name_has_value} | visible: 'false'}}

type and name refer to the referenced variable. For example, to short-circuit the following optional variable: {{campaigns.${messaging}}:

1

{{string.${campaigns_messaging_has_no_value}  | visible: 'false'}} OR campaign_id IN ({{campaigns.${messaging} | is_required: 'false'}})

Visible

For whether variables are visible. All variables are visible by default in the Variables tab, where you can input values.

There are several special variables whose value is dependent on another variable, such as whether another variable has a value. These special variables are marked as not visible so they don’t show in the Variables tab.

1

visible: 'false'

Required

For whether variables are required by default. An empty value for a variable usually leads to an incorrect query.

1

required: 'false'

Order

For selecting the position of the variable in the Variables tab.

1

order: '1'

Include quotes

For surrounding the values of a variable with single quotes.

1

include_quotes: 'true'

For surrounding the values of a variable with double quotes.

1

include_double_quotes: 'true'

Placeholder

For specifying the placeholder text shown in the variable’s input field.

1

placeholder: 'enter some value'

Description

For specifying the description text shown under the variable’s input field.

1

description: 'some description'

Default value

For specifying the default value for the variable when no value is specified.

1

default_value: '5'

Hide label

For hiding the variable’s label.

1

hide_label: 'true'
