Triggering in-app messages

• java
• kotlin

1
Map<String, String> getExtras()

1
extras: Map<String, String>

1. Verify you’re using the automatic integration initializer, which is enabled by default in versions 2.2.0 and later.
2. Set the in-app message operation default to DISCARD by adding the following line to your braze.xml file.

   1
    <string name="com_braze_flutter_automatic_integration_iam_operation">DISCARD</string>


To trigger an in-app message using a server-sent event, send a silent push notification to the device, which allows a custom push callback to log an SDK-based event. This event will then trigger the user-facing in-app message.

Step 1: Create a push callback to receive the silent push

Register your custom push callback to listen for a specific silent push notification. For more information, refer to Standard Android push integration.

Two events will be logged for the in-app message to be delivered, one by the server and one from within your custom push callback. To make sure the same event is not duplicated, the event logged from within your push callback should follow a generic naming convention, for example, “in-app message trigger event,” and not the same name as the server sent event. If this is not done, segmentation and user data may be affected by duplicate events being logged for a single user action.

• java
• kotlin

1
2
3
4
5
6
7
8
9
10
11
Braze.getInstance(context).subscribeToPushNotificationEvents(event -> {
  final Bundle kvps = event.getNotificationPayload().getBrazeExtras();
  if (kvps.containsKey("IS_SERVER_EVENT")) {
    BrazeProperties eventProperties = new BrazeProperties();

    // The campaign name is a string extra that clients can include in the push
    String campaignName = kvps.getString("CAMPAIGN_NAME");
    eventProperties.addProperty("campaign_name", campaignName);
    Braze.getInstance(context).logCustomEvent("IAM Trigger", eventProperties);
  }
});

1
2
3
4
5
6
7
8
9
10
11
Braze.getInstance(applicationContext).subscribeToPushNotificationEvents { event ->
    val kvps = event.notificationPayload.brazeExtras
    if (kvps.containsKey("IS_SERVER_EVENT")) {
        val eventProperties = BrazeProperties()

        // The campaign name is a string extra that clients can include in the push
        val campaignName = kvps.getString("CAMPAIGN_NAME")
        eventProperties.addProperty("campaign_name", campaignName)
        Braze.getInstance(applicationContext).logCustomEvent("IAM Trigger", eventProperties)
    }
}

Step 2: Create a push campaign

Create a silent push campaign triggered via the server sent event.

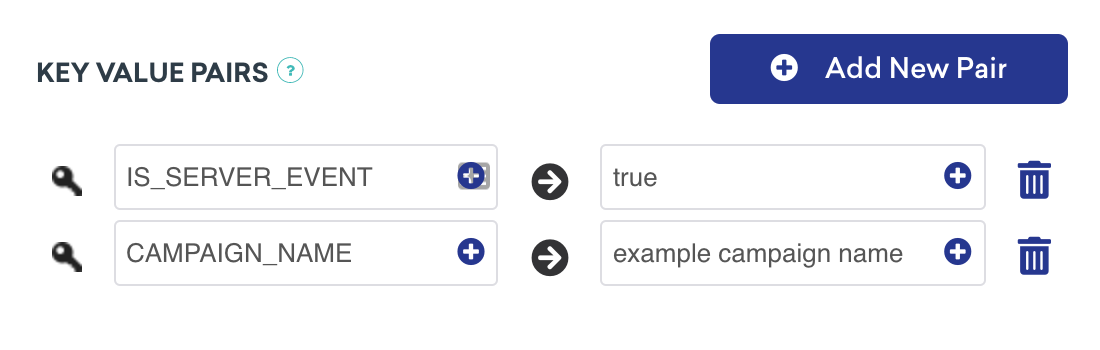

The push campaign must include key-value pair extras that indicate that this push campaign is sent to log an SDK custom event. This event will be used to trigger the in-app message.

The earlier push callback sample code recognizes the key-value pairs and logs the appropriate SDK custom event.

Should you want to include any event properties to attach to your “in-app message trigger” event, you can achieve this by passing these in the key-value pairs of the push payload. In this example, the campaign name of the subsequent in-app message has been included. Your custom push callback can then pass the value as the parameter of the event property when logging the custom event.

Step 3: Create an in-app message campaign

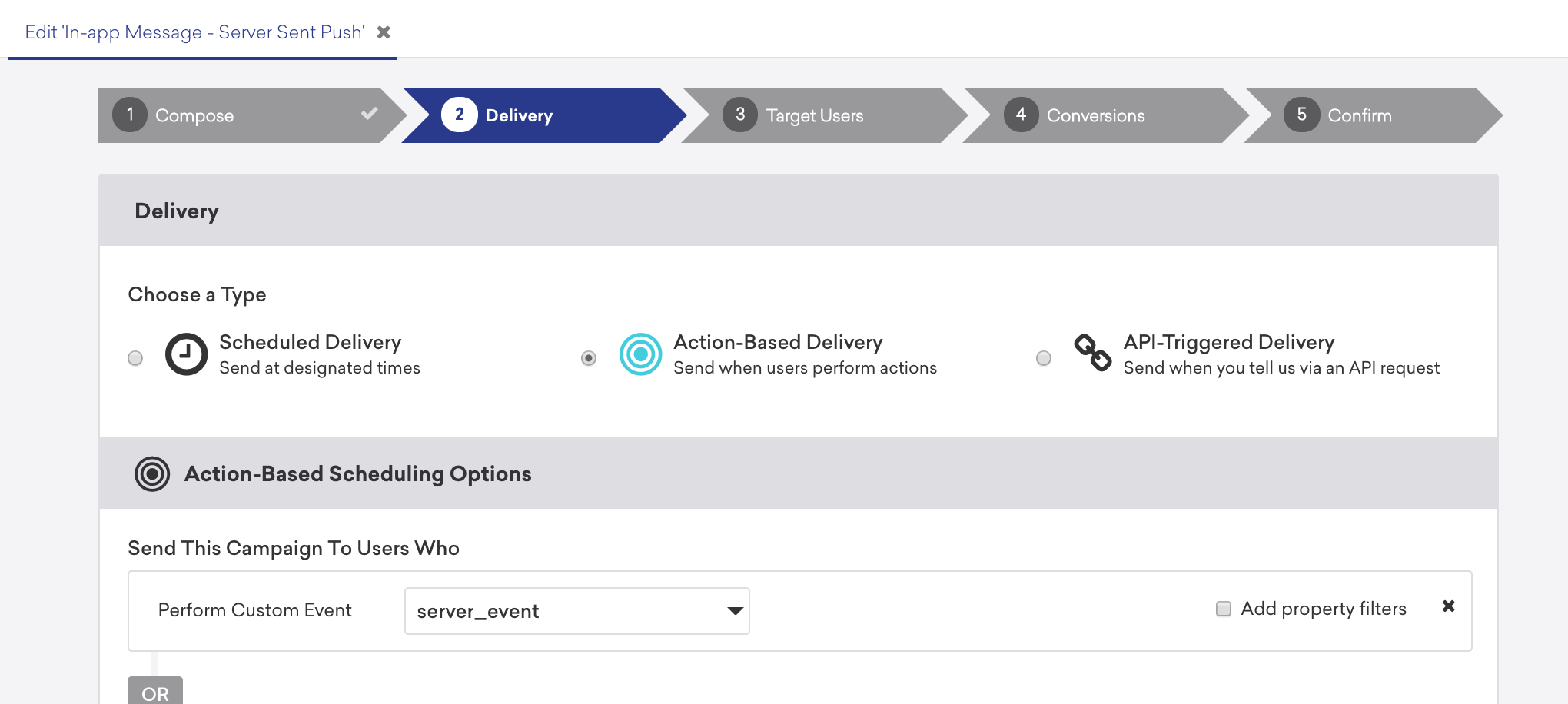

Create your user-visible in-app message campaign in the Braze dashboard. This campaign should have an action-based delivery and be triggered from the custom event logged from within your custom push callback.

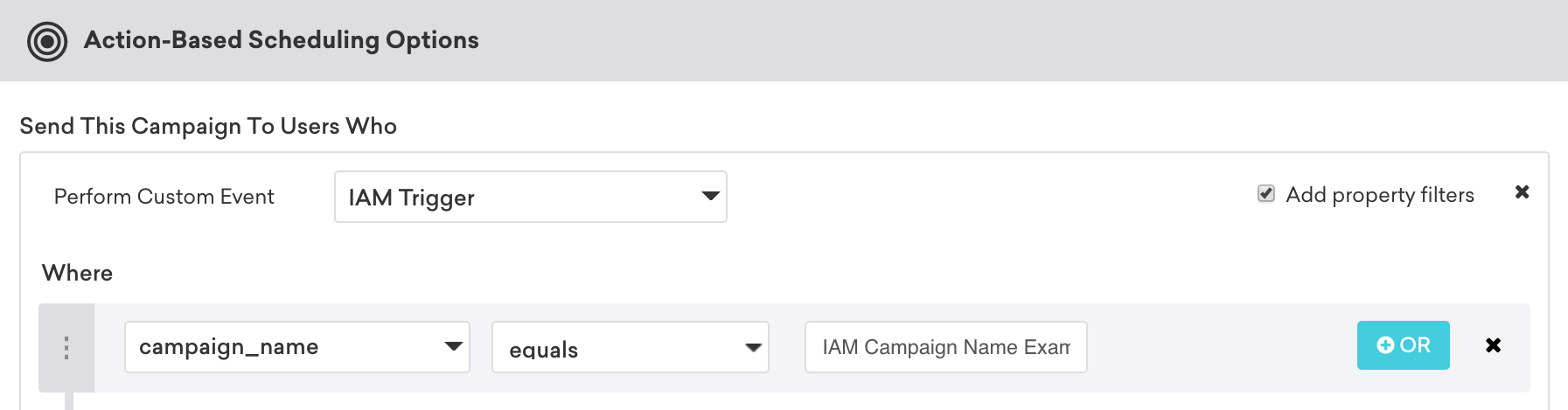

In the following example, the specific in-app message to be triggered has been configured by sending the event property as part of the initial silent push.

If a server-sent event is logged while the app is not in the foreground, the event will log, but the in-app message will not be displayed. Should you want the event to be delayed until the application is in the foreground, a check must be included in your custom push receiver to dismiss or delay the event until the app has entered the foreground.

• java
• kotlin

1
BrazeInAppMessageManager.getInstance().addInAppMessage(inAppMessage);

1
BrazeInAppMessageManager.getInstance().addInAppMessage(inAppMessage)

• java
• kotlin

1
2
3
// Initializes a new slideup type in-app message and specifies its message.
InAppMessageSlideup inAppMessage = new InAppMessageSlideup();
inAppMessage.setMessage("Welcome to Braze! This is a slideup in-app message.");

1
2
3
// Initializes a new slideup type in-app message and specifies its message.
val inAppMessage = InAppMessageSlideup()
inAppMessage.message = "Welcome to Braze! This is a slideup in-app message."
